Status on the map view

<< Click to Display Table of Contents >>

Navigation:  Menu and toolbars > Survey menu > Status >

Status on the map view

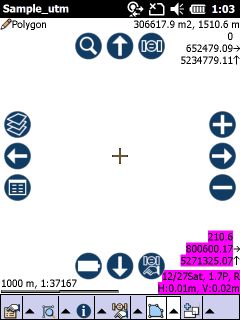

GPS status information on the map view / estimated hRMS positional accuracy

estimated_hrms



210.6 - Current height

800600.17 - Current Easting coordinate

5271325.07 - Current Northing coordinate

12/27 - Number of used satellites of the current position



1.7P, R - PDOP value of the current position; R - Solution type of the current position



Solution types on the map view:



A - Autonomous solution

D - DGPS corrected solution

F - Floated RTK solution

R - Fixed RTK solution



Position accuracy on NMEA based GNSS receivers:

When the software connected to the receiver and the NMEA GST sentence is available on the device, the GPS status area displays two position accuracy values: the horizontal and the vertical accuracy of the current GNSS position.



hRMS=0.06m - horizontal root mean square positional accuracy

~hRMS - estimated hRMS positional accuracy displays based on vRMS = ~1.5 x hRMS when the value of the hRMS cannot be calculated by the NMEA GST sentence



vRMS=0.40m - vertical root mean square positional accuracy







Background colour of the status information:



Red: Indicates that the GPS/GNSS quality does not correspond to the used Quality settings on the Settings panel > GPS tab or fix position not available



Green: Indicates, that the current solution type is an autonomous solution



Blue: Indicates, that the current solution type is DGNSS solution


Yellow: Float RTK



Pink: Fix RTK
