Edit Vertex

dtToolVertex Edit

Edits the vertices of a selected geometry. The Edit tool remains active for editing the geometry of the selected feature until another tool is activated.



Keyboard command: V



Tap / Left click: selects feature on the map at the tapped location for vertex editing mode, selects vertex using the vertex snap

Drag / Left drag: moves the selected vertex using crosshairs

Tap and hold / Right click: opens the New Vertex panel or the Existing Vertex panel if you started the Tap and hold / Right click over existing vertex

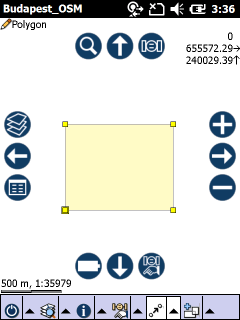

Activated vertex editing mode

VertexEditingMode



Vertex snap

VertexSnap

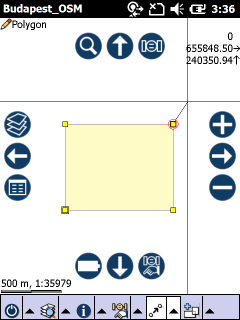

Moving a vertex

VertexMoving VertexMoved
