Printing attributes

You can print the selected data table through the Print Setup and the Print Report panel. You can access to this command in the Menu of the Record panel: Menu > Report.

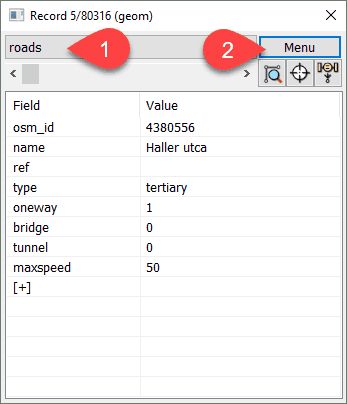

1.Select data table; 2. open the Menu

Record_dialog_box_print_report-menu



Report option in the Menu

Record_dialog_box_print_report-opened_menu



Print Report panel



The Print Report panel

print_report



Title: Customizable textual field that will be placed on the printed report as Report Title. Default Title is 'Report'.



Subtitle: Customizable textual field that will be placed on the printed report as Report Subtitle under the Report Title.

Default Title is:

'Customer:

Surveyor:'.



Bitmap logo: You can add a bitmap logo in these formats to your printable map: BMP, PCX, JPG, TIF



Print through Metafile: Prints through Metafile. This option is recommended to use for some special older printers.



OK  - Opens the Print Setup panel and sends the printable content to the selected Printer.



Printed report

printed_report



k-tip-iconFilter conditions can be used to the Print Report function.
